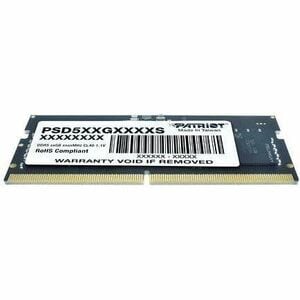

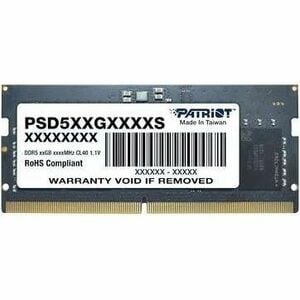

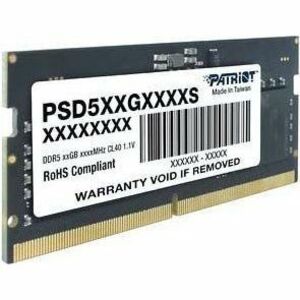

Patriot memory DDR5 5600 CL46 SO-DIMM Memory Module for Intel Platforms

SIGNATURE LINE DDR5

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.

• Product Type: RAM Module
• CAS Latency: CL46
• Device Supported: Notebook
• Error Checking: On-die ECC
• Number of Pins: 262-pin
• Form Factor: SoDIMM
• Memory Speed: 5600 MHz
• Memory Size: 32 GB
• Brand Name: Patriot Memory
• Memory Technology: DDR5 SDRAM
• Memory Standard: DDR5-5600/PC5-44800
• Product Family: Signature Line
• Memory Voltage: 1.10 V
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
• Product Type: RAM Module
• Manufacturer Part Number: PSD532G56002S
• Manufacturer Website Address: http://www.patriotmemory.com
• Manufacturer: Patriot Memory, LLC
• Product Name: Signature Line 32GB DDR5 SDRAM Memory Module
• Package Type: Retail
• Product Line: Signature Line
• Brand Name: Patriot Memory
• Number of Pins: 262-pin
• Thickness: 3 mm
• Weight (Approximate): 18.5 g
• Form Factor: SoDIMM
• Length: 69 mm
• Width: 30 mm
• CAS Latency: CL46
• Device Supported: Notebook
• Error Checking: On-die ECC
• Number of Modules: 1 X 32GB
• Memory Speed: 5600 MHz
• Memory Size: 32 GB
• Memory Technology: DDR5 SDRAM
• Memory Standard: DDR5-5600/PC5-44800
• Memory Voltage: 1.10 V
