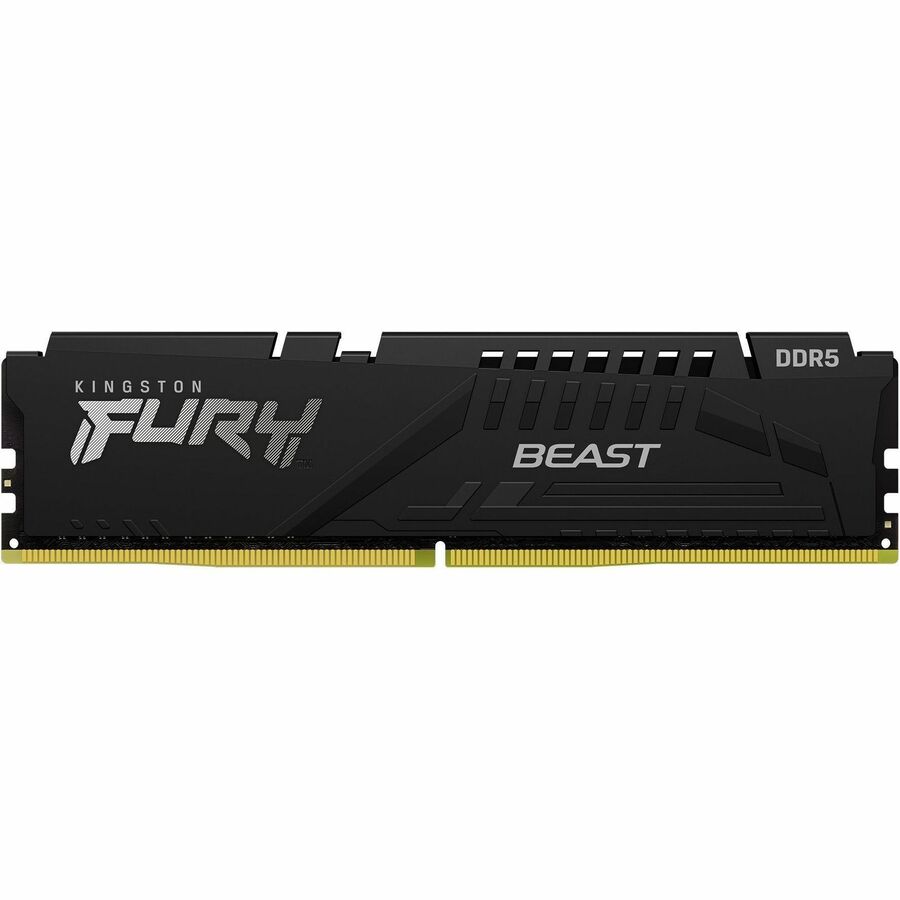

Kingston 32GB DDR5 6000MT/S CL30 DIMM Kit of 2
Brand Kingston MPN KF560C30BBEK2-32 Type Electronics > Electronics Accessories > Memory > RAM
Or pay in 4x $57.01 with
- Description
Kingston FURY KF560C30BBEK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
- Product Type: RAM Module
- CAS Latency: CL30
- Error Checking: Non-ECC
- Number of Pins: 288-pin
- Signal Processing: Unbuffered
- Form Factor: DIMM
- Memory Speed: 6000 MHz
- Memory Size: 32 GB
- Brand Name: Kingston
- Memory Technology: DDR5 SDRAM
- Memory Standard: DDR5-6000/PC5-48000
- Product Family: FURY Beast
- Memory Voltage: 1.40 V
- Product Type: RAM Module
- Manufacturer Part Number: KF560C30BBEK2-32
- Manufacturer Website Address: http://www.kingston.com
- Manufacturer: Kingston Technology Company
- Product Name: 32GB (2x16GB) DDR5 6000MT/s CL30 FURY Beast Black EXPO
- Product Line: FURY Beast
- Brand Name: Kingston
- Number of Pins: 288-pin
- Thickness: 6.6 mm
- Form Factor: DIMM
- Length: 133.4 mm
- Width: 34.9 mm
- CAS Latency: CL30
- Error Checking: Non-ECC
- Number of Modules: 2 x 16GB
- Signal Processing: Unbuffered
- Memory Speed: 6000 MHz
- Memory Size: 32 GB
- Memory Technology: DDR5 SDRAM
- Memory Standard: DDR5-6000/PC5-48000
- Memory Voltage: 1.40 V
- Memory Rank: Single-rank
