Hp Universal Dock G2 with USB-C/A

Universal docking for legacy and current notebooks

Get to work fast with one cable from your USB-A- and USB-C™-enabled notebooks to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks from HP, Apple®, Dell, Lenovo, and more.

Future-proof your fleet

Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-,USB-C™-, and Thunderbolt™-enabled notebooks.

Single-cable solution

Add your accessories and up to three 4K displays to the dock. Then simply connect it to your notebook through a single USB-C™ cable to access your devices and charge your PC.

Backward compatibility

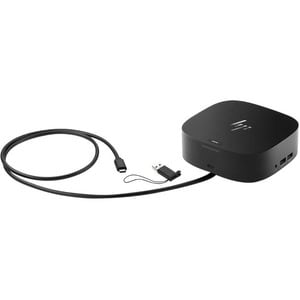

Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays. Use the optional HP 4.5 mm and USB-C Dock Adapter G2 for legacy device barrel charging.

Easily manage your commercial HP fleet

Help IT secure and remotely manage your deployed commercial HP notebooks and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Small footprint

Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.

Electronic asset management for your docks

Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.

We test so you can rest.

Rigorous testing helps assure dock compatibility across HP notebooks and Apple®, Dell, and Lenovo notebooks with USB-C™ charging ports.

Product Specifications:

• Host Interface: USB Type A
• Host Interface: USB Type C
• Product Type: Docking Station
• Connectivity Technology: Wired
• Brand Name: HP
• HDMI: Yes
• Network (RJ-45): Yes
• Maximum Power Supply Wattage: 100 W
• DisplayPort: Yes
• Total Number of USB Ports: 6
• Number of USB 3.0 Ports: 4
• USB Type-C: Yes
• Product Type: Docking Station
• Manufacturer Part Number: 5TW13AA
• Manufacturer Website Address: http://www.hp.com
• Manufacturer: HP Inc.
• Product Name: USB-C/A Universal Dock G2
• Brand Name: HP
• Host Interface: USB Type C
• Host Interface: USB Type A
• HDMI: Yes
• Network (RJ-45): Yes
• DisplayPort: Yes
• Number of DisplayPort Outputs: 2
• Number of HDMI Outputs: 1
• Total Number of USB Ports: 6
• Number of USB 3.0 Ports: 4
• Headphone/Microphone Combo Port: Yes
• USB Type-C: Yes
• USB Type-C Detail: One USB-C port with data and power out (15W)
• Compatibility:

  Compatible Brands:

  • HP
  • Apple
  • Dell
  • Lenovo

• Kensington Security Slot: Yes
• Weight (Approximate): 694 g
• Height: 45 mm
• Width: 121.9 mm
• Depth: 121.9 mm
• Maximum Power Supply Wattage: 100 W
• Connectivity Technology: Wired
